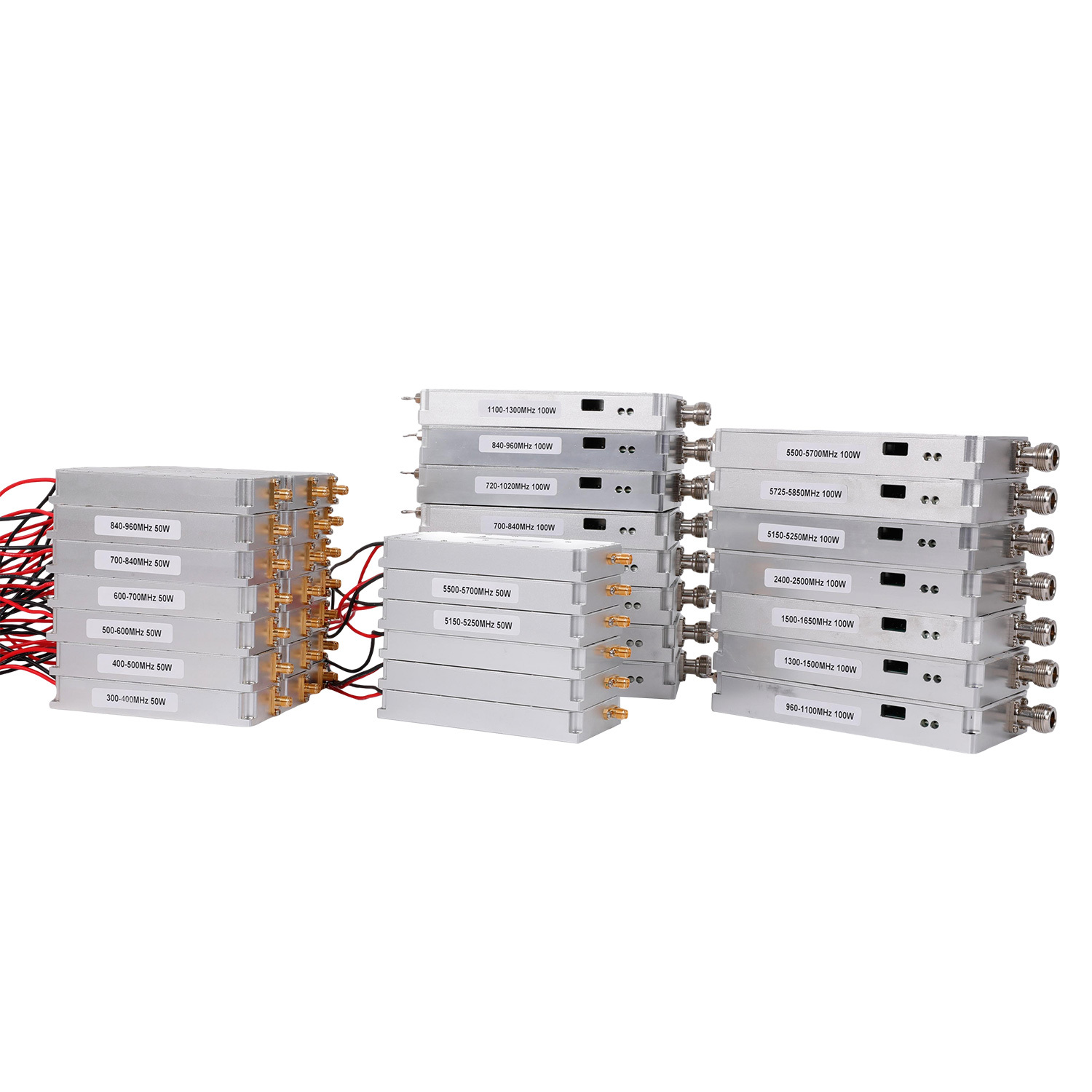

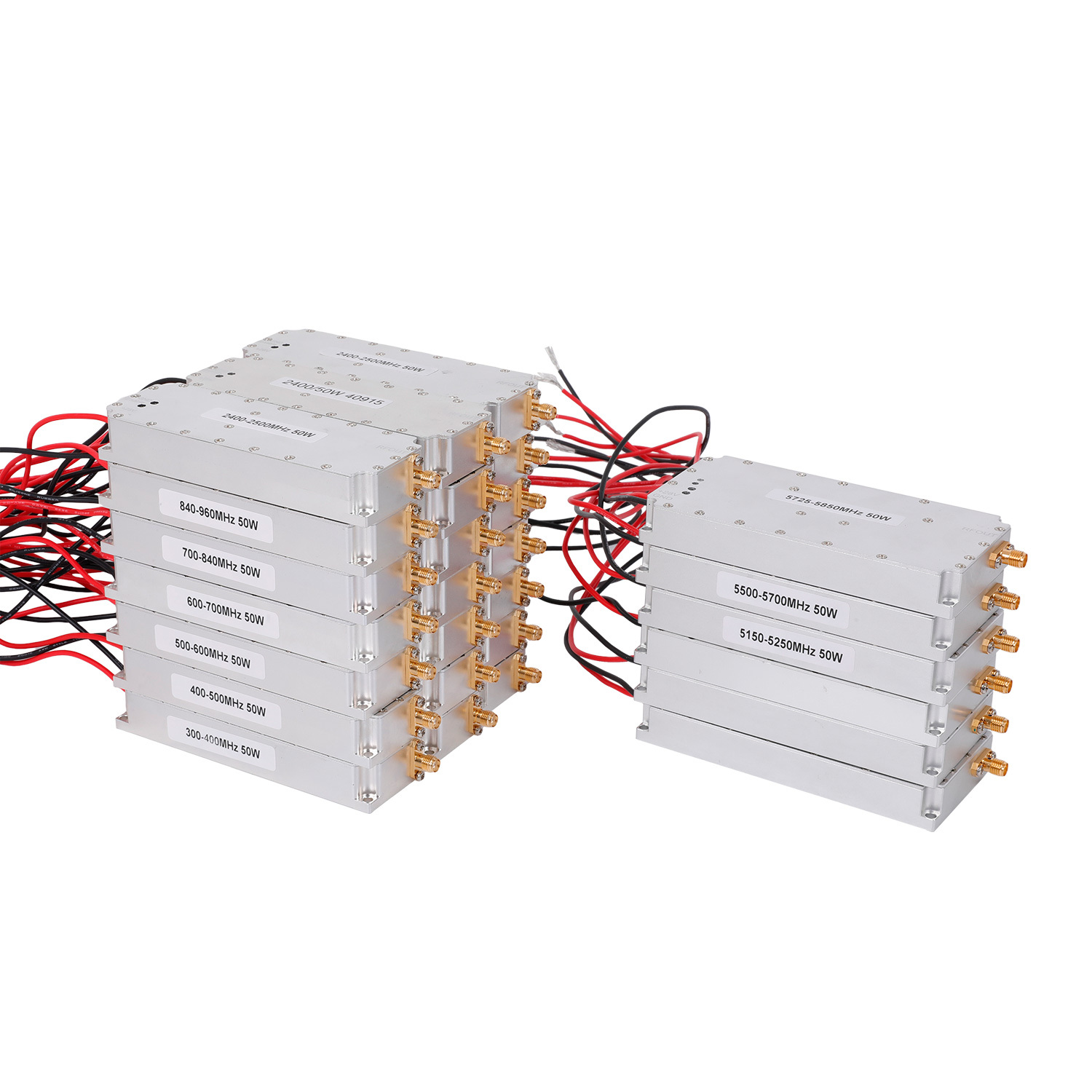

100W Module Technical Datasheet
1.RF DATA
|
Item |
Spec. |
Remarks |
|
|
Frequency Range |
2700-3500MHz |
Bandwidth Range±10MHz |
|
|
Working Voltage |
28V; 30V for 5.2G,5.8G |
24-30V |
|
|
Working current |
8 - 10A |
output 100W |
|
|
Analog sweeping speed |
120 KHz |
8μ/s |
|
|
Output Power (Max) |
50±1 dBm |
100W |
|
|
Gain (Max) |
50±1 dB |
|
|
|
Ripple in Band |
≤ 3 dB |
Peak |
|
|
Bandwidth adjustment |
Yes |
By screw |
|
|
Center adjustment |
Yes |
By screw |
|
|
Enable control |
Customize |
24-28V |
|
|
Input power (Max) |
≤ +10dBm |
Optional (If signal source from Subscriber) |
|
|
Input Signal Source |
Built-in high-speed noise modulation signal source |
Optional (can customize VCO, DDS or SDR) |
|
|
Output VSWR |
≤1.5 |
Inside circulator, VSWR protect |
|
|
High Low Temperature test |
Working Temperature |
-20～+65℃ |
Working properly |
|
Gain Stability |
±1 dB |
at -20℃～+65℃ |
|
|
Power stability |
±1 dB |
at -20℃～+65℃ |
|
|
Power supply Port |
Positive and negative lines |
24-28V; GND; (optional: Enable control wire) |
|
|
Shell Material |
Aluminum with natural color oxide sand blasting |
|
|
|
Vibration Need |
Meet the load need of moving vehicle |
|
|
|
RF output connector |
N-Female |
|
|
|
LED indicator light |
Power ON/OFF |
|
|
|
Dimension |
150*80*22mm |
|
|
|
Installation Dimension |
144.3*74*22 mm |
|
|
|
Screw Size |
M2.5 |
|
|
|
Weight |
800g |
|
|
