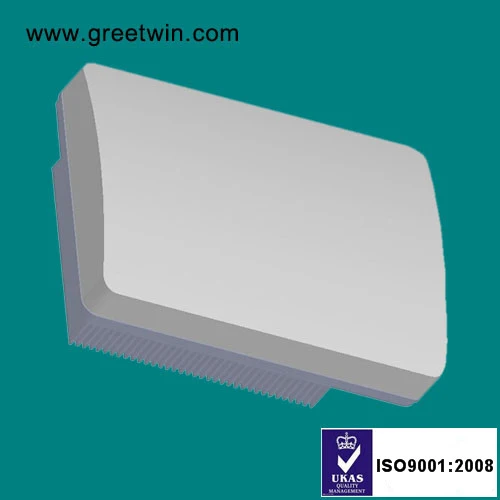

Signal Jammer /RF Cell Jammer 70W with 7 Band(GW-JB40),
Technical Features.
IP65, Built-in Directional Antenna
Taking use of super-high frequency with high effective power;
Effective Output power (channel power) and bigger interfere radius;
Only interfere downlink frequency of mobile system,without disturbing norrmal working of Base Stations;
Imported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration;
Perfect self-protection function, when the equipment overheating, over Output power, VSWR alarm, Jammer will automatically turn off the faulty module to avoid Jammer damage;
All weather waterproof design, with built-in antennas and using professional waterproof enclosure;
Integrated remote monitoring system, remote maintenance available via the Internet; RJ45 Network Cable.
Applications:
Prisons, military, government, Oil and Gas Storage Facilities and fields, Churches, Theatres, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
| Channel | Frequency Range | Output Power(±1dBm) |
| CDMA | 851 - 894 MHz | 40 dBm |
| GSM | 925 - 965 MHz | 40 dBm |
| DCS | 1805 - 1880 MHz | 40 dBm |
| 3G | 2110 - 2170 MHz | 40 dBm |
| Wifi 2.4G | 2400 - 2483 MHz | 40 dBm |
| 4G | 2620 - 2690 MHz | 40 dBm |
| Wifi 5.8G | 5725 - 5850 MHz | 33 dBm |
| Power supply:AC 220V Jamming range: 10 to 100m according to environment signal strength | ||
| Power consumption: 150W Net Weight: 7.0kg. Size(L×W×H): 400×288×155mm Inside battery (optional.) |
||
| Humidity: 30%-95% Running Temperature: -20 to +50 Celsius Degree | ||
