Anti-Drone Uav Detection and Jamming Equipment 1-3km Drone Jammer System

1.Product Description

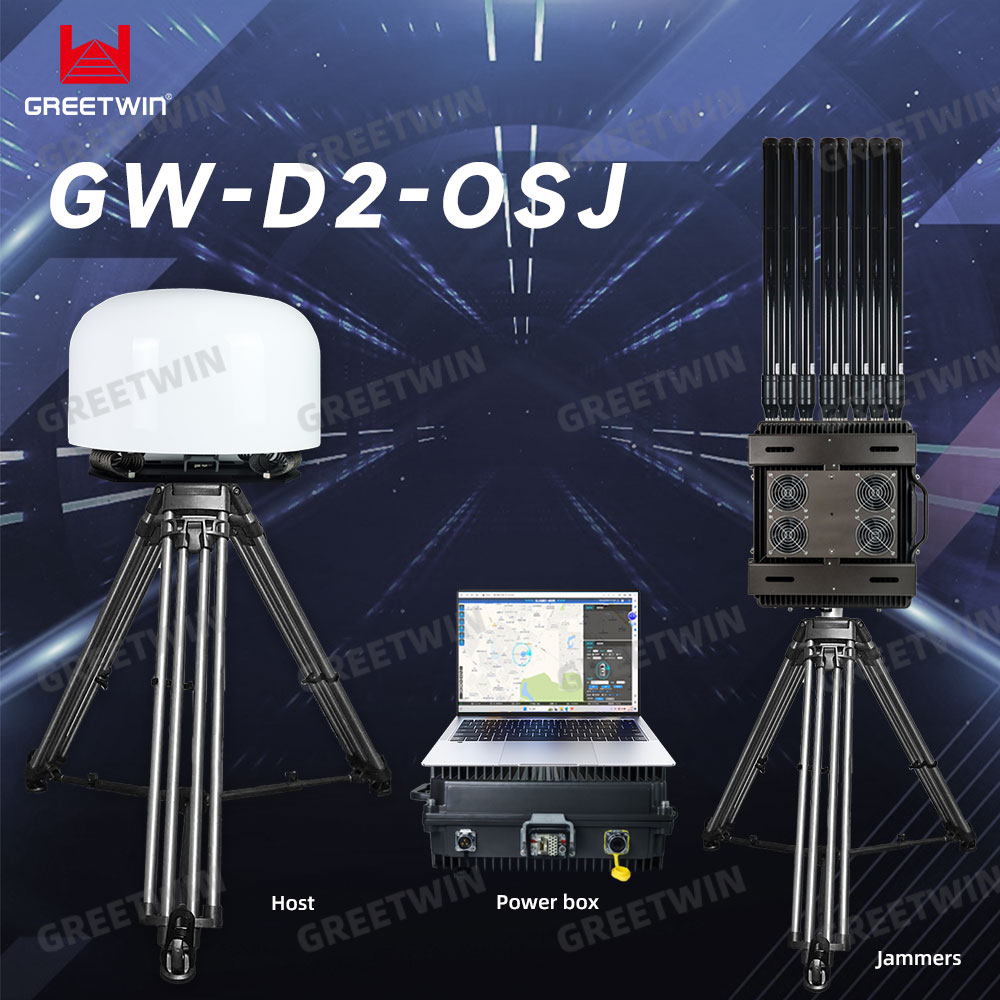

D2 vehicle-mounted UAV detection and control equipment integrates detection, positioning and countermeasures unit, and can realize the detection, identification, positioning, tracking and interference disposal of invasive UAV. Through the depth analysis and data mining of the UAV signal, the equipment can monitor the multidimensional information such as the serial number, model, position (longitude and latitude, azimuth), speed, height, altitude, take-off point, return point, track, remote control position (longitude and latitude, azimuth) of the UAV within the monitoring range. The equipment adopts integrated industrial design, simple and hidden appearance, strong environmental adaptability, flexible deployment mode, and can be mounted on board or fixed type.

Name: Anti Drone Uav Detection and Jamming Equipment 1-3km Drone Jammer System
Brand: Greetwin
SKU: GW-UAVD2-OSJ
Availability: InStock
Rating: 5 (1 reviews)

The equipment is suitable for low-altitude security in large-scale activity security, public security patrol, border defense, political leaders accompanying protection, management area, power and petrochemical park and airport, and can work single offline, flexible and fast deployment, mobile response, to meet the needs of various scenarios.

2. Product function

UAV detection: it can detect and identify the brand, model, frequency and other information of the invading UAV;
UAV positioning: can locate the position information of DJI series UAV, real-time display of UAV position (latitude and longitude), orientation, distance information (the distance relative to the position of the equipment), speed, height, etc.;
Pilot positioning: can position the pilot position information of DJI UAV, real-time display of the pilot (remote control) position (latitude and longitude), orientation, distance information (the distance of the pilot relative to the position of the equipment);
Unique identity code identification: it can identify the unique serial number of DJI series UAV and confirm the unique identity information of the UAV;
Integrated inspection and strike: the equipment can automatically counter the UAV after detecting and identifying the UAV;
Multi-target trajectory tracking: it can realize multi-target UAV positioning and tracking, and display multiple UAV flight tracks at the same time;

Table 2 Product performance indicators-detection and positioning

No.	Index	Parameter	remarks
1	Detection and identify UAV type	DJI, Autel, Dahua, Yuneel and other common brands of UAV and other self-made FPV, WiFi machine and other most models on the market
2	Positioning drone type	DJI, Air, Mini, FPV, Avata, series, etc
3	Detection frequency	100MH z ~6GH z
4	Detection location distance	1~5km	Depending on the environment
5	Detection height	0m~1000m
6	Number of targets can be detected simultaneously	≥10
7	simultaneously track and display the trajectory of the drone	≥5
8	azimuth error	≤1°(RMS)
9	positioning accuracy	≤10m
10	Probe success rate	≥99%
11	Identify response times	≤3s

Table 3 Product Performance indicators-countermeasures

No.	Index	Parameter	remarks
1	work pattern	Radio interference suppression
2	The object of action	UAV map transmission, flight control link, navigation signal
3	Working frequency	900 MH z, 1.5GHz, 2.4GHz, 5.8GHz and other commonly used frequency, can be independently controlled and combined on demand
4	Counter distance	1km-3km (depending on the environment and model)	Depending on the environment
5	Counter mode	Directional and omnidirectional

3.1 Mechanical parameters

Table 4. Mechanical parameters of the products

No.	Index	Parameter	remarks
1	Weight	≤32kg	main host
2	Size	ΦH(600mm425mm)±2mm

3.2 Electrical characteristics

Table 5. Electrical characteristics of the products

No.	Index	Parameter	remarks
1	Power consumption	detector only: 55 ± 5W Counterfull open: 1500 ± 5W
2	External power voltage	100~240V

Full-Spectrum UAV Detection & Tracking
This system scans across 100 MHz–6 GHz to detect DJI, Autel, Dahua, Yuneec, and DIY FPV drones up to 5 km away.
It captures drone metrics like serial number, model, flight path, altitude, speed, and pilot coordinates in real time.
The detailed detection data empowers drone detectors to support automated jamming responses and strategic threat analysis.

Accurate RF Positioning for Threat Intercepts
Using advanced triangulation, the equipment pinpoints both drone and pilot positions with ≤10 m precision and ≤1° azimuth error.
The intuitive interface displays multi-drone trajectories, GPS coordinates, and distance metrics.
Security teams can quickly assess risks and execute responses, enhancing police drone detector use during patrols and critical events.

Seamless Auto-Jamming with 1–3 km Range
Once a UAV enters the jamming zone, the unit automatically activates its 9-band signal jammer detector, covering 900 MHz, 1.5 GHz, 2.4 GHz, and 5.8 GHz.
Operators can choose directional or omni jamming for flexible disruption. This hands-free anti drone jammer ensures swift neutralization with no operator delay.

Rugged Vehicle Integration & Environmental Resilience
Weighing under 32 kg and built into IP65-rated housing (600 × 425 mm), this system mounts easily on vehicles or fixed towers.
It operates from 100–240 V AC or 12–32 V DC and performs reliably between –20 °C and 65 °C.
Built for field use during mobile patrols or static deployment, it's a reliable signal jammer detector for mission-critical security.

Product Advantages

Comprehensive Drone Detection Capabilities
Monitors frequencies from 100 MHz to 6 GHz, detecting multiple drone types—including DJI and Autel—with high sensitivity.
Handles over ten targets simultaneously and tracks five flight paths, reinforcing anti drone solutions with reliable, scalable situational awareness.

Precise Geolocation for Complete Situational Awareness
Provides high-accuracy location data—≤10 m position and ≤1° direction precision—for drones and pilots.
The onboard interface includes coordinates, flight tracking, and alert visuals,
ensuring effective drone detector performance in perimeter defense and law enforcement missions.

Automatic Jamming with Multi-Band Flexibility
Equipped with a 9-band jamming module covering standard UAV frequencies, it delivers automatic interference at 1–3 km.
Users can employ directional or omni modes based on scenario needs. This drone detectors solution ensures consistent, on-demand aerial defense.

Durable Design for Field Reliability
This system is built for year-round outdoor use, featuring IP65 protection, cooling, and flexible power options (AC/DC).
With a compact form and rugged structure, it’s ideal for vehicle-mounted or fixed installations. As a police drone detector, it's designed for demanding security missions.

Contact us now to get pricing, technical specs, or customization options for this advanced drone detection and jamming system.
