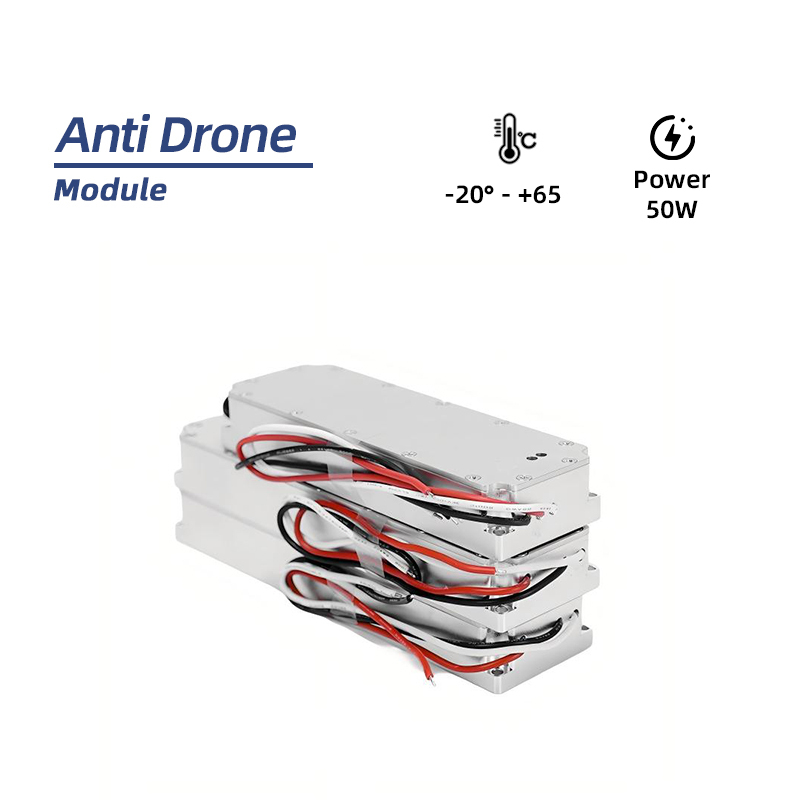

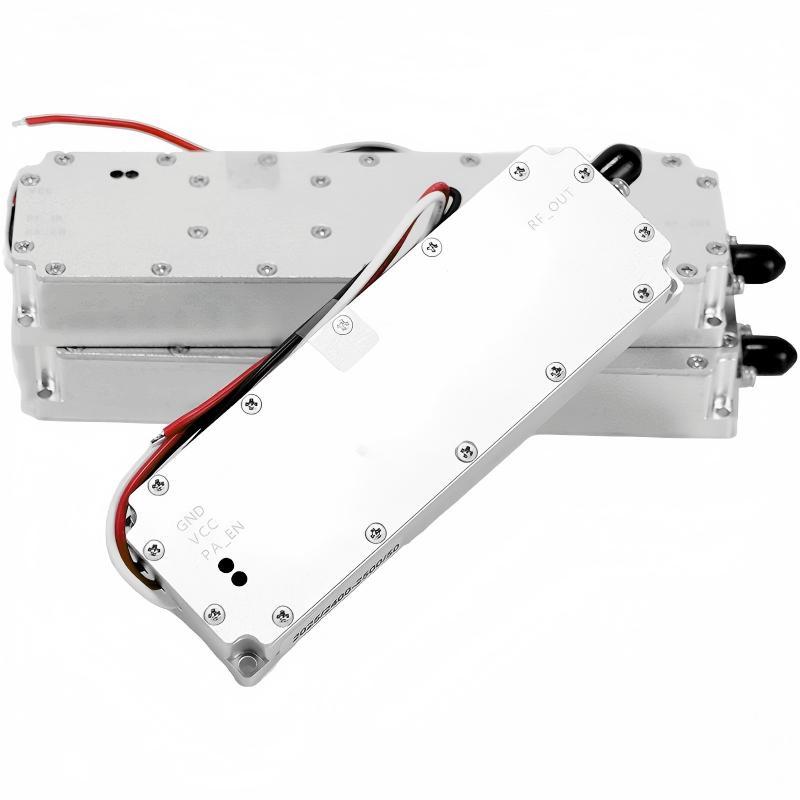

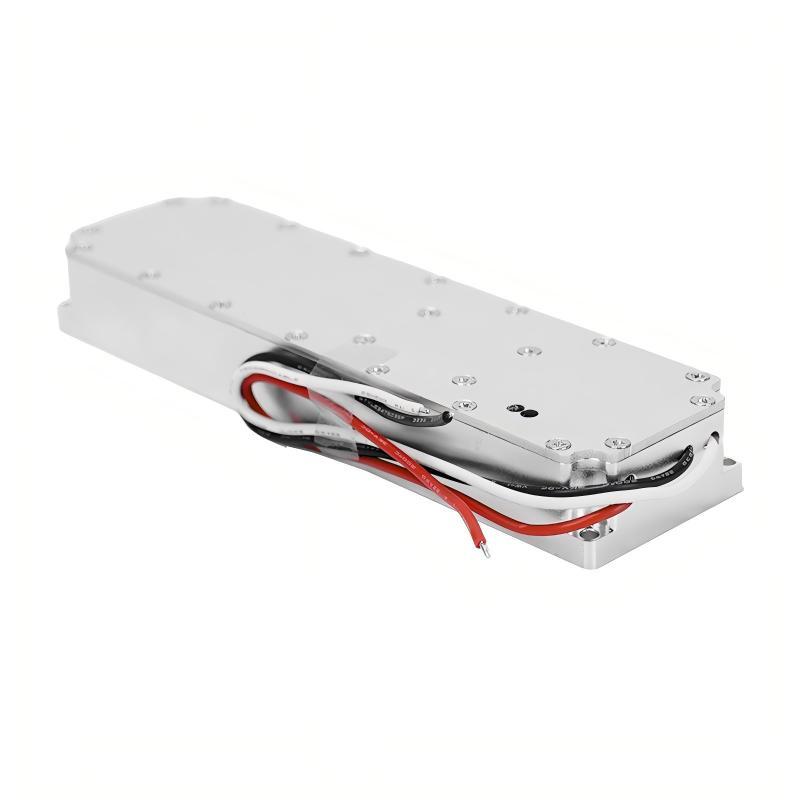

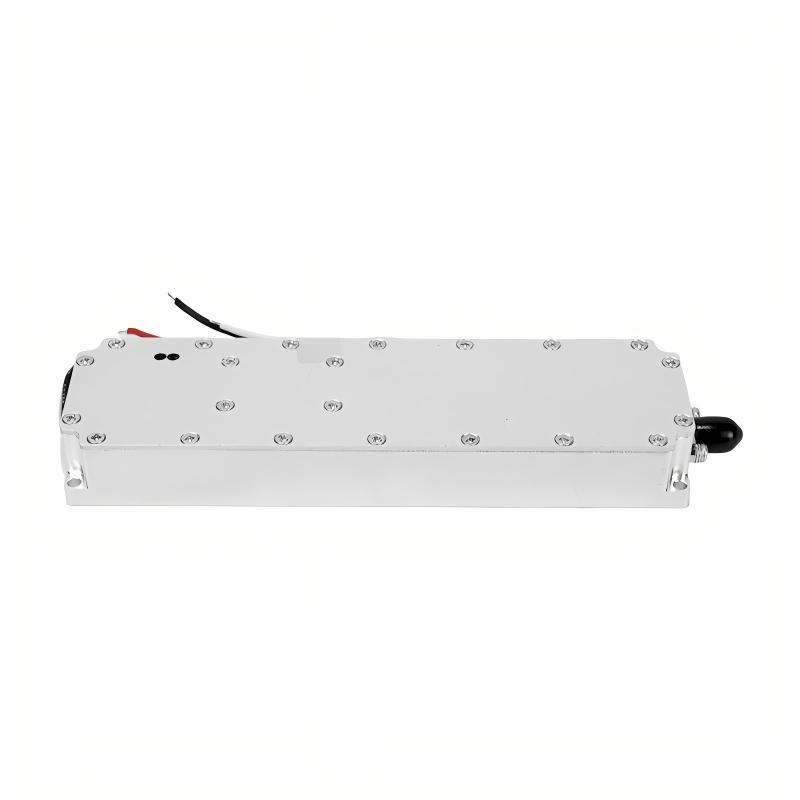

Customizable 50W 7795-8095Mhz GaN Drone Jammer Module rf Anti Fpv Drone Module

No.GW-50WM
Customizable 50W 7795-8095Mhz GaN Drone Jammer Module rf Anti Fpv Drone Module
  • Customizable 50W 7795-8095Mhz GaN Drone Jammer Module rf Anti Fpv Drone Module
  • Customizable 50W 7795-8095Mhz GaN Drone Jammer Module rf Anti Fpv Drone Module
  • Customizable 50W 7795-8095Mhz GaN Drone Jammer Module rf Anti Fpv Drone Module
  • Customizable 50W 7795-8095Mhz GaN Drone Jammer Module rf Anti Fpv Drone Module

Description

Customizable 50W 7795-8095Mhz GaN Drone Jammer Module rf Anti Fpv Drone Module

Item

Spec.

Remarks

1

7795-8095 MHz

Bandwidth Range±5MHz

Working Voltage

28V

24-28V

Working Current

5.5A



Sweeping Speed

Standard 120KHz (Customizable 50-300KHz)

8μ/s

Output Power (Max)

47±1 dBm



Gain (Max)

47±1 dB



Ripple in Band

≤ 3 dB

Peak

Bandwidth Adjustment

Yes

By screw

Center Adjustment

Yes

By screw

Enable Control

Customize

3-28V

Output VSWR

≤2.0

VSWR protect

High Low

Temperature test

Working Temperature

-20~+80℃

Working properly



Gain Stability

±2 dB

-20℃~+80℃



Power Stability

±2 dB

-20℃~+80℃

Power Supply Port

Positive and negative lines

24-28V; GND;

(Optional: Enable control wire)

Shell Material

Aluminum with natural color oxide sand blasting



RF Output Connector

SMA



Dimension

132*53*17mm








                                                                                        1. Adopts high-performance GaN semiconductor chip, outputs stable 150W high power, greatly improves signal suppression efficiency in ultra-wide frequency band.
                                                                                        2. Covers continuous frequency band of 7795-8095MHz, realizes full-band wireless signal countermeasure for low-altitude frequency signals.
                                                                                        3. Optimized wideband RF circuit design ensures flat power output across all target frequencies, no frequency attenuation or signal instability.
                                                                                        4. High heat dissipation and industrial-grade structure design, supporting long-time continuous operation for outdoor security defense scenarios.
                                                                                        5. Compact modular structure, easy to integrate and install, compatible with various wireless security and protection equipment systems.
                                                                                        6. High anti-interference capability and low noise, provides accurate and effective frequency band signal suppression for low-altitude security monitoring.
