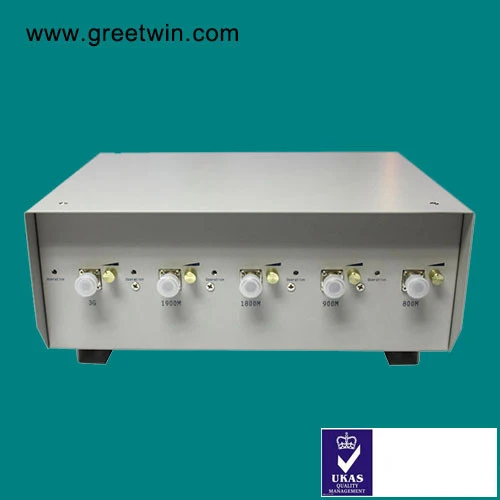

150m High Power 100W Military Jammer 2G/3G/4G/Wi-Fi 2.4G,5.8G Prison Jammer
Model:GW-J50WP
Color: Grey
Output power: total 100W, 20-30W each band
Jamming radius: 20-150 meters
Product size: 500 x 500 x 200mm
Product weight: 16kg
Introduction:
GW-J50WP is a high power prison and military type cellular jammer. It is used to block mobile signals in a large area. It is used in military areas to ensure that no confident information is leaked by any spy of the enemy and in prisons it is used for security reason. The jammer is very powerful and can block mobile phone signal in large areas. It is loaded with features like worldwide network frequency system and output power adjustable design which makes it user friendly and convenient to use.
GW-50WP prison jammer will jam five frequencies: (optional)AM, FM Radio, LoJack 173MHz, VHF, UHF, Walkie-talkie, interphone, Wireless FM Radio, Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800, LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI, Bluetooth, Spy camera, WIMAX, UAV, Drone, etc.Shielding distance up to 20-150 meters, depend on the signal strength in the given area.
Advantages:
1.Jammers unit housing unit is waterproof and heat sink design, properly for outdoor use.
2. Good smart cooling system inside
3. Each bands can adjust RF output power, support 5 or 6 band.
4. Have switch to turn on or off each bands without influencing the other bands operation
5. Working time: not-stop working
6. VSWR circuit protection to ensure system will not burn out should there be antenna short circuiting or disconnection.
7. High Efficiency output power, long jamming distance.
Applications:
Prisons, Military, School, detention house or Government buildings, and other sensitive locations where the mobile phone signals are not allowed.
Specification:
| Output interface | Description | Shield band of frequency | RF output power(+1dBm) | |
| CH1 | CDMA800 | 851-894 MHz | 43dBm | |
| CH2 | WCDMA 3G | 2110-2170 MHz | 43dBm | |
| CH3 | GSM900 | 925-960 MHz | 43dBm | |
| CH4 |
GSM1800 /PCS 1900 |
1805-1880 MHz /1930-1990 MHz |
43dBm | |
| CH5 | GPS or WIFI |
1570-1580 MHz or 2400-2500 MHz |
43dBm | |
| Power supply: AC220V, DC 28V | ||||
| Total Output Power: 100Watt | ||||
| Power consumption: 300Watt | ||||
|
Weight: 16Kg Size(length × wind × high):500×500×200mm |
||||
|
Humidity: 30%-95% Running Temperature: -20ºC to +55ºC |
||||
| Jammer Module Number | 5 or 6 | |||
| Cooling System | Systematic Smart Cooling System | |||
| System Protection | VSWR | |||
| Jamming Source | Frequency Scan Technology | |||
| Antenna Type | Omni antennas or High Gain Directional Panel Antennas | |||
| Jumper | 7D-FB superflexible coaxial cable | |||
| Jamming range: 20-150m according to signal density of mobile network | ||||
