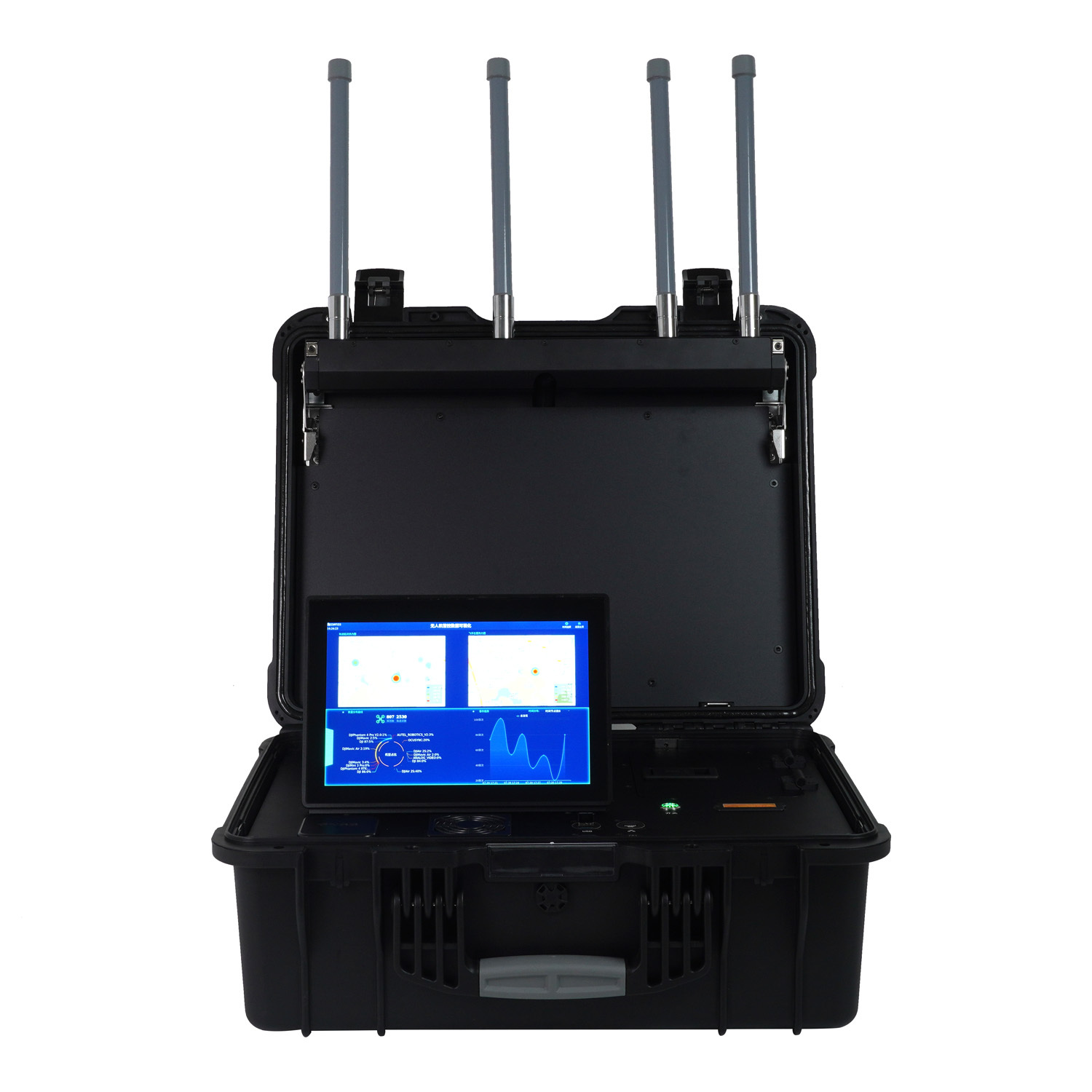

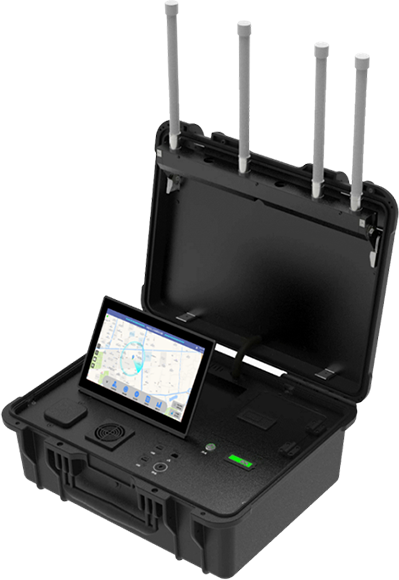

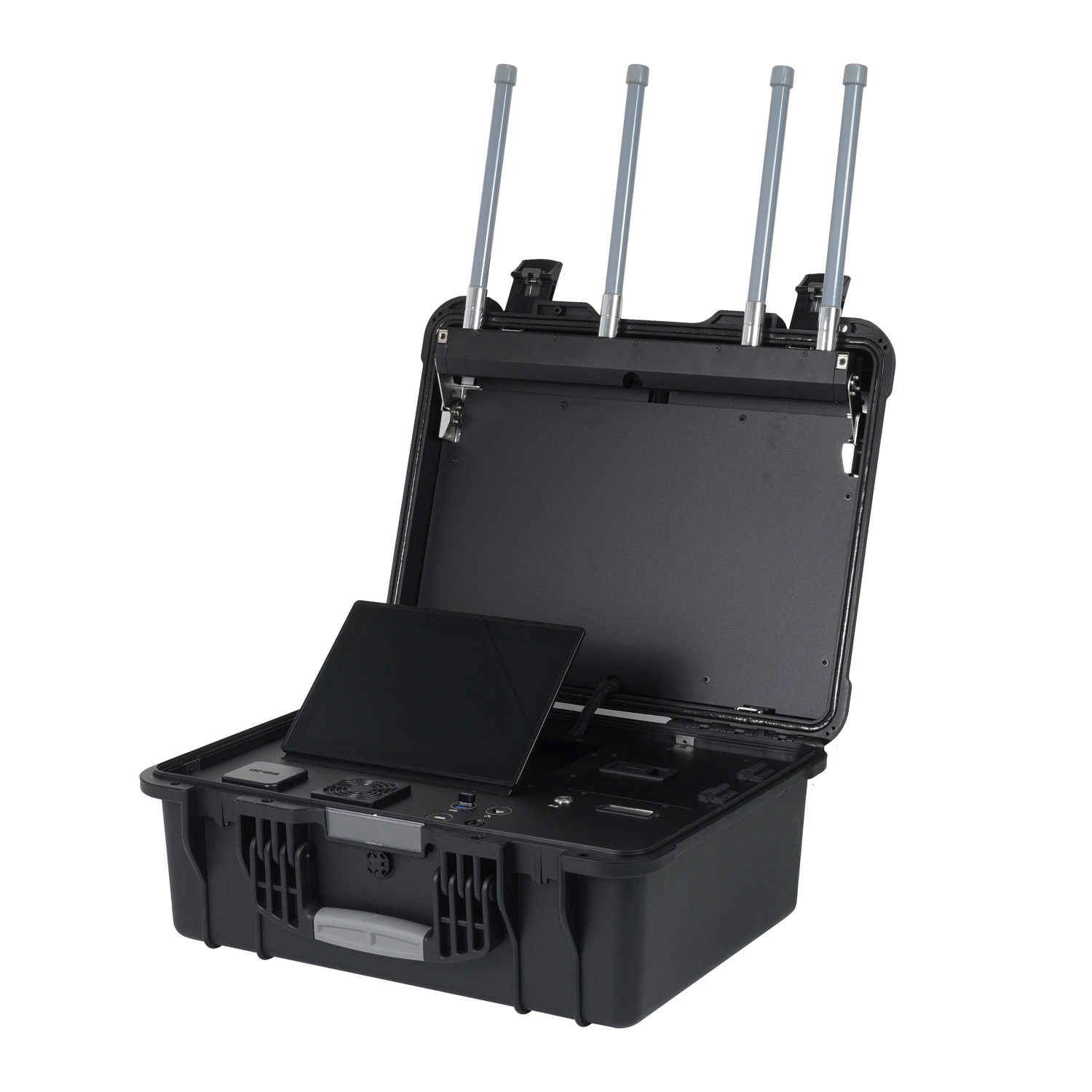

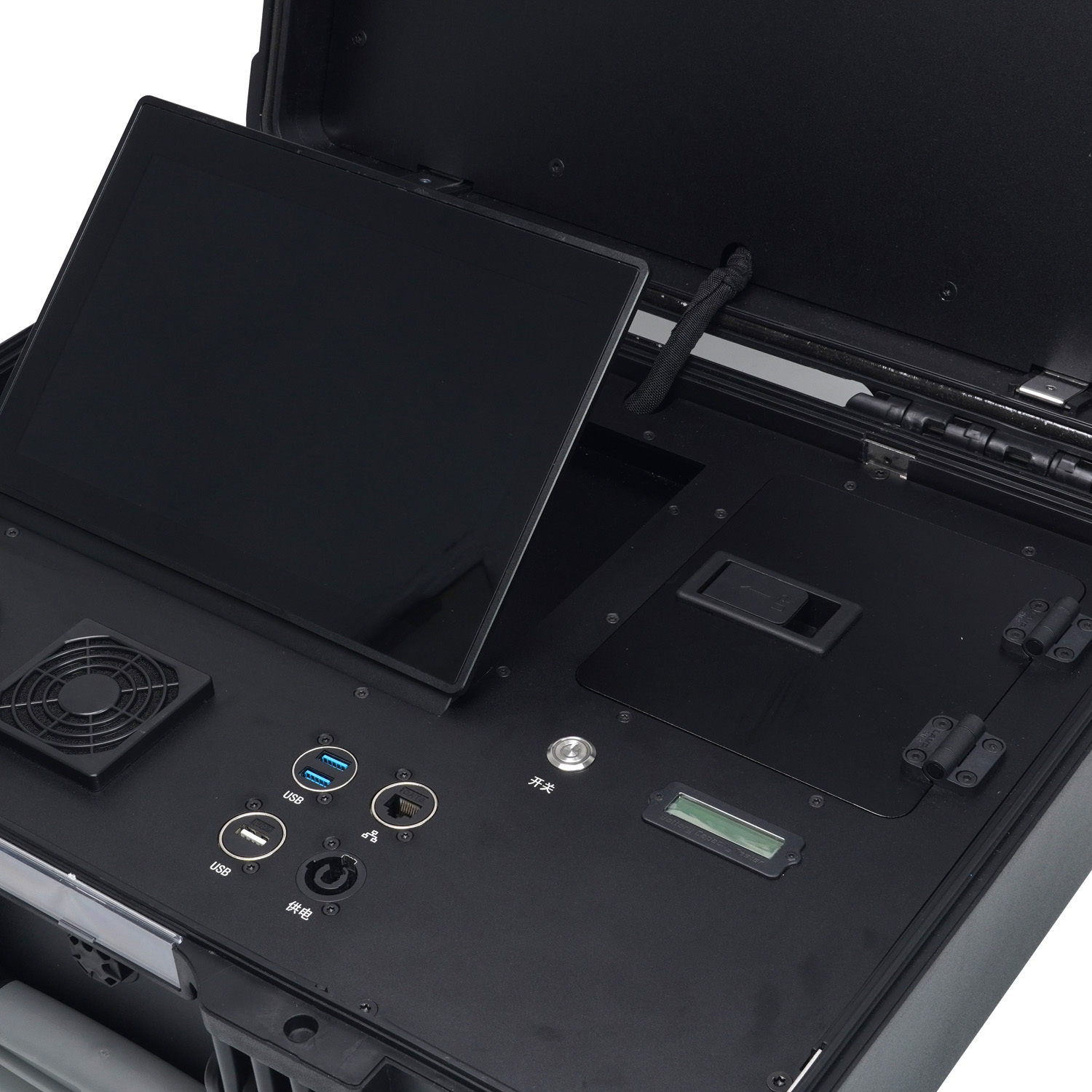

Portable 1-10KM omnidirectional Drone FPV Detection Alarm Security suitcase Uav DetectorModel: GW-H1C
I.OverviewGW-H1C drone detector is a portable drone monitoring platform, used for detection, identification, location and tracking of drones and pilots. GW-H1C is suitable for drone monitoring in scenarios such as major events, daily security patrol, VIP secret service, critical infrastructure etc. It works offline or online, with option to connect multiple devices to cover large area. It is highly portable, easy to carry and use, ready to deploy in seconds.
Product composition:
| # |
Components |
Quantity |
Unit |
| 1 |
H1C device |
1 |
pcs |
| 2 |
Removable battery |
2 |
pcs |
| 3 |
Power adapter |
1 |
pcs |
2. Specifications
2.1 Performance
| # |
Index |
Parameter |
Remark |
| 1 |
Drone model that can be detected |
DJI,AUTEL,FIMI,DAHUA,PowerVision,YUNEEC,UDIRC and other common brands of drones and some self-made FPVs and WiFi drones |
|
| 2 |
Drone model that can be located |
DJI Mavic,Air,Mini,FPV,Avata series |
|
| 3 |
Frequency |
900M,1.2G,2.4G,5.2G,5.8GHz |
|
| 4 |
Range |
1~10km radius |
Varies due to environment and drone model |
| 6 |
Altitude |
0m~1000m |
|
| 7 |
Drone swarm detection |
≥5 drones |
|
| 8 |
Detection result refresh time |
4~6s |
Varies due to environment and drone model |
| 9 |
Azimuth error |
≤1.5°(RMS) |
|
| 10 |
Location error |
≤10m |
|
| 11 |
Ready to use |
≤120s |
|
2.2 Mechanics
| 1 |
Weight |
≤20kg |
Adaptor excluded |
| 2 |
Size |
(520mm*415mm*224mm)±2mm |
Case closed |
2.3 Electronics
| 1 |
Power consumption |
≤100W |
|
| 2 |
External supply voltage |
100 ~ 220V AC |
|
| 3 |
Battery run time |
≥4h |
Dual batteries |
2.4 Environment adaptability
| 1 |
Operating temperature |
-20~65ºC |
|
| 2 |
Storage temperature |
-40~70ºC |
|
| 3 |
Waterproof |
IP65 |
Case closed |
2.5 Screen
| 1 |
Screen size |
10.1 inches |
|
| 2 |
Resolution |
1080P |
1920*1200 |
3.Functions1.Drone detection and identification: GW-H1C detects and identifies various name brand drones such as DJI and AUTEL, as well as WiFi drones, FPVs, some DIY drones;
2.Trajectory tracking and display: The real-time flight trajectory of the tracked drones can be displayed on the GIS map;
3.Pilot position display: The position of the pilot (remote controller) can be tracked and displayed, and the location information can be updated in real time;
4.Drone detailed information monitoring: The detailed information of drones and pilots can be displayed in real time, including: drone ID, frequency, latitude and longitude, model, altitude, height, pilot latitude and longitude, distance between the device and the pilot (or the distance between the drone and the reference point) and other information.
5.Sole identity: For each drone, GW-H1C can identify its unique S/N number;
6.Black and white list: Distinguish between "friend" and "foe", GW-H1C will not alarm when a "friend" drone is detected, a "friend" or "foe" can be tagged (only support DJI series drones);
