Portable Drone Detection range 1-5 km and Drone Jamming range 1-3km integrated system
I. Feature:
1. Detection range 1-5 km, Jamming range: 1-3km.
2. It can detect more than 10 drones at the same time;
3. Counter multiple targets at the same time;
4. Monitor the surrounding drone signals in real time and detect drones in advance;
5. Work modes: unattended and manual.
|
Number
|
Index
|
Parameter
|
Notes
|
|
1
|
Detect drone types
|
DJI series drones, traversing drones, and DIY image transmission drones
|
|
|
2
|
Detection frequency band
|
860-930MHz , 1.2G,1.4GHz、2.4GHz、5.2GHz, 5.8G
|
|
|
3
|
Detection distance
|
distance（m）
|
Antenna gain（dBi）
|
The target aircraft is DJI MAVIC air2
|
|
1-5km
|
3-5
|
|
4
|
Volume
|
167mm*83mm*42mm（L*W*H）
|
|
|
5
|
Weight
|
（500±5）g
|
Without antenna
|
|
6
|
Protection level
|
IP40
|
|
|
7
|
Working temperature
|
-20 ~ +60℃
|
|
|
8
|
Identify response time
|
≤5s
|
|
|
9
|
Supply voltage range
|
9-36V
|
|
|
10
|
Power dissipation
|
5.5±0.5W
|
|
Drone Jammer is the ultimate outdoor anti-drone solution. It’s safe, simple to operate and can be installed at houses, offices, airports or Military important places easily. The device uses focused electronic counter measures to block the drone’s control, GPS and video signals while minimizing the impact on other local devices. It comes with Omni directional antennas to disrupt 7 frequencies used by the majority of commercial drones. With a radius range of up to 3 km. With multiple power outputs the operator can choose if they want the drone to return to home or land. The device does no harm to the drone or its operator. Most commercial drones use 2.4GHz or 5.8GHz for their control and video transmission frequencies.
Channel
Working frequency
Output power(±1.5dBm)
2.4G
2400-2500MHz
51dBm （100W）
2.4G
2400-2500MHz
47dBm （50W）
5.8G
5725-5850MHz
47dBm （50W）
5.8G
5725-5850MHz
47dBm （50W）
GPS L1
1550-1620MHz
47dBm （50W）
5.2G
5150-5350MHz
47dBm （50W）
GPS L2
1170-1280MHz
47dBm （50W）
900
860-930MHz
47dBm （50W）
Total 8 band, output power: 450W
Power Consumption : 1000W
Power supply: AC220V, DC24-28V
Main engine weight : 45Kg
Size: 513×462×233mm
With omni antenna 8pcs ,
Rapid Detection Across Multiple BandsThe Greetwin Portable Drone System monitors UAV RF from 900 MHz to 5.8 GHz, enabling real‑time detection, identification, positioning, and tracking of drones up to 5 km away.
It logs details like UAV brand, model, pilot location, flight path, height, and speed—all essential data for anti drone solutions in law‑enforcement and security operations.
With onboard analysis and auto‑trigger jamming, this system seamlessly escalates to active defence when a threat enters the specified range.Precision Jamming With 1–3 km Effective RangeBuilding on detection, the system can initiate directional or omni jamming across major UAV bands up to 3 km.
Its integrated anti drone jammer module blocks drone command, data-link, and video feeds, forcing drones to hover or return to launch.
Whether deployed in convoy scenarios or standalone posts, it offers reliable interference without impacting neighboring systems thanks to RF isolation.Rugged, Portable and Rapidly DeployableWeighing ≤32 kg with compact dimensions (600 mm × 425 mm), the system is built into rugged, IP65-rated housing with reinforced handles and cooling fans.

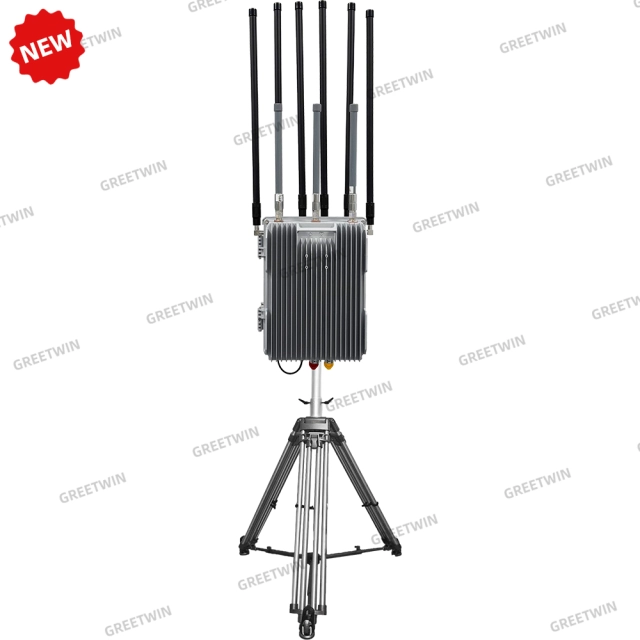

It supports 100–240 V AC and vehicle 12–32 V DC power, enabling deployment on vehicles, rooftops, or tripods in minutes.
Its adaptive design supports single-operator carriage, mobile patrols, or temporary security posts.Data Fusion & OEM Configuration for ClientsConfigured for OEM integration, this Greetwin system can be customized with frequency set, firmware logic, and form factor for specific use cases.
The modular design eases maintenance and upgrade, supporting deployment in military or private fleet platforms.
Backed by ISO9001 quality and 10k units/month capacity, this anti drone solutions system delivers reliability and scale for security integrators worldwide.
Product Advantages
Integrated Detection and CountermeasureThis all-in-one anti drone solutions device offers detection and active jamming in a single compact unit.
Its dual-mode operation ensures immediate UAV threat response within seconds, reducing reaction time and improving perimeter security efficiency.Long-Range UAV ControlWith 5 km detection and 3 km jamming capability, this system provides extended operational radius compared to typical systems.
Enhanced situational awareness enables proactive threat neutralization before UAVs breach protected airspace.Field-Ready Rugged DesignBuilt to IP65 standards and featuring a cooled, vibration-resistant housing, the system withstands outdoor deployment.
It’s easily mounted on vehicles or positioned in static posts, maintaining peak performance across varied environmental conditions.Scalable and CollaborativeModules can operate in convoy mode with RF isolation to prevent signal bleed.
This enables coordinated deployment of multiple units for expanded coverage, supporting layered protection strategies essential to robust anti drone jammer campaigns.Contact us now to secure pricing, lead times, and customization details for this field-ready anti drone system.
