Applications
FPV Signal Booster
Drone Signal Extender
Features
Maximum output power 20W
Ultra-large capacity battery, 5000mAh/16.8V

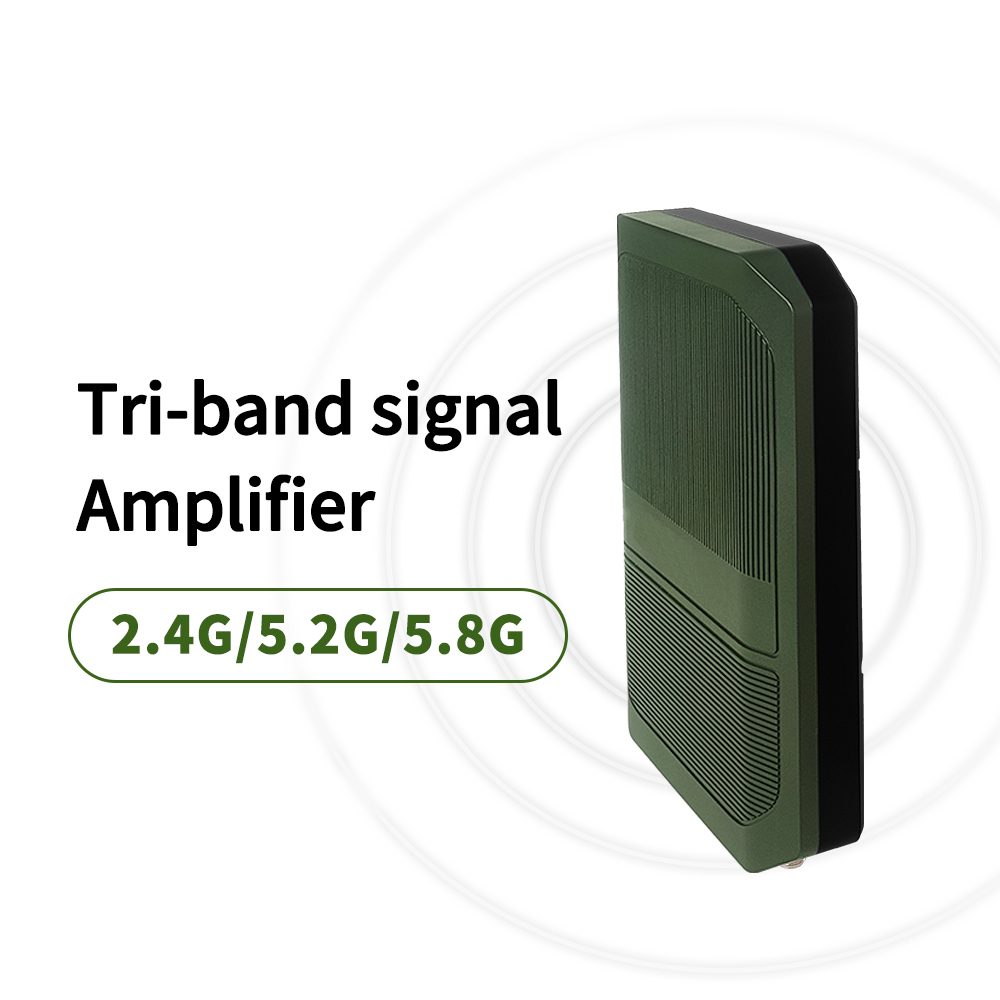

2.4G/5.2G/5.8G Tri-band dual-port working at the same time, free switching
All-aluminum shell, better cooling effect
|
Number |
Items |
Specifications |
|
|
1 |
Frequency Range |
2400-2500MHz |
5150-5350MHz/5725-5850MHz |
|
2 |
Max Output Power |
43dBm(20W) |
43dBm(20W) |
|
3 |
Antenna Gain |
15dB±1 |
18dB±1 |
|
4 |
Battery Capacity |
5000mAh/16.8V |
|
|
5 |
Receiving Gain |
12dB±1 |
15dB±1 |
|
6 |
Transmission Gain: |
20dB±1 |
20dB±1 |
|
7 |
Input Trigger Power |
Min:3dBm Max:23dBm |
Min:3dBm Max:23dBm |
|
8 |
EVM |
3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz |
|
9 |
Noise Figure |
<2.2dB |
<2.2dB |
|
10 |
Current Supply |
3.2A@Pout 43dBm 16.8V |
3.2A@Pout 43dBm 12V |
|
11 |
Charging Voltage |
16.8V/3A |
|
|
12 |
Working Time |
6 Hours |
|
|
13 |
TX/RX Switch Time Delay |
<1 us |
|
|
14 |
Water Proof |
IP68 |
|
|
15 |

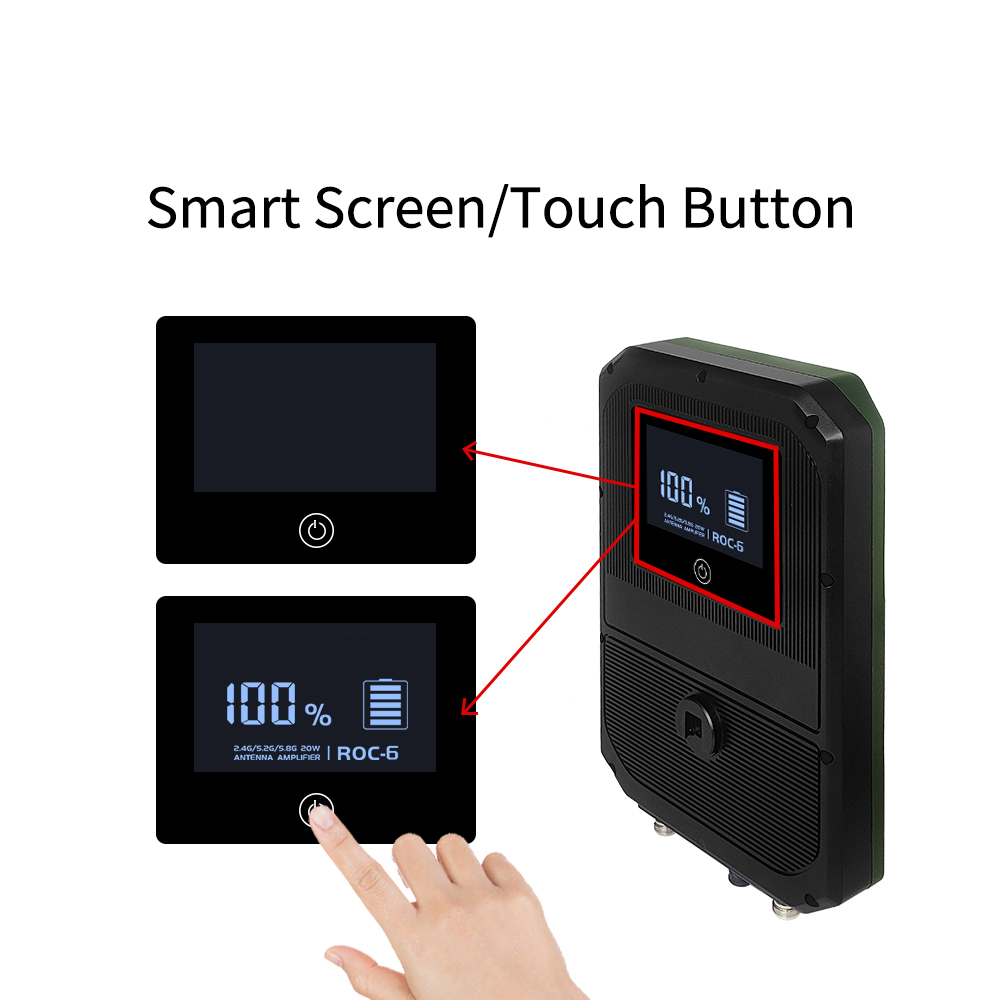

Battery Capacity Tester |
LCD Screen |
|
|
16 |

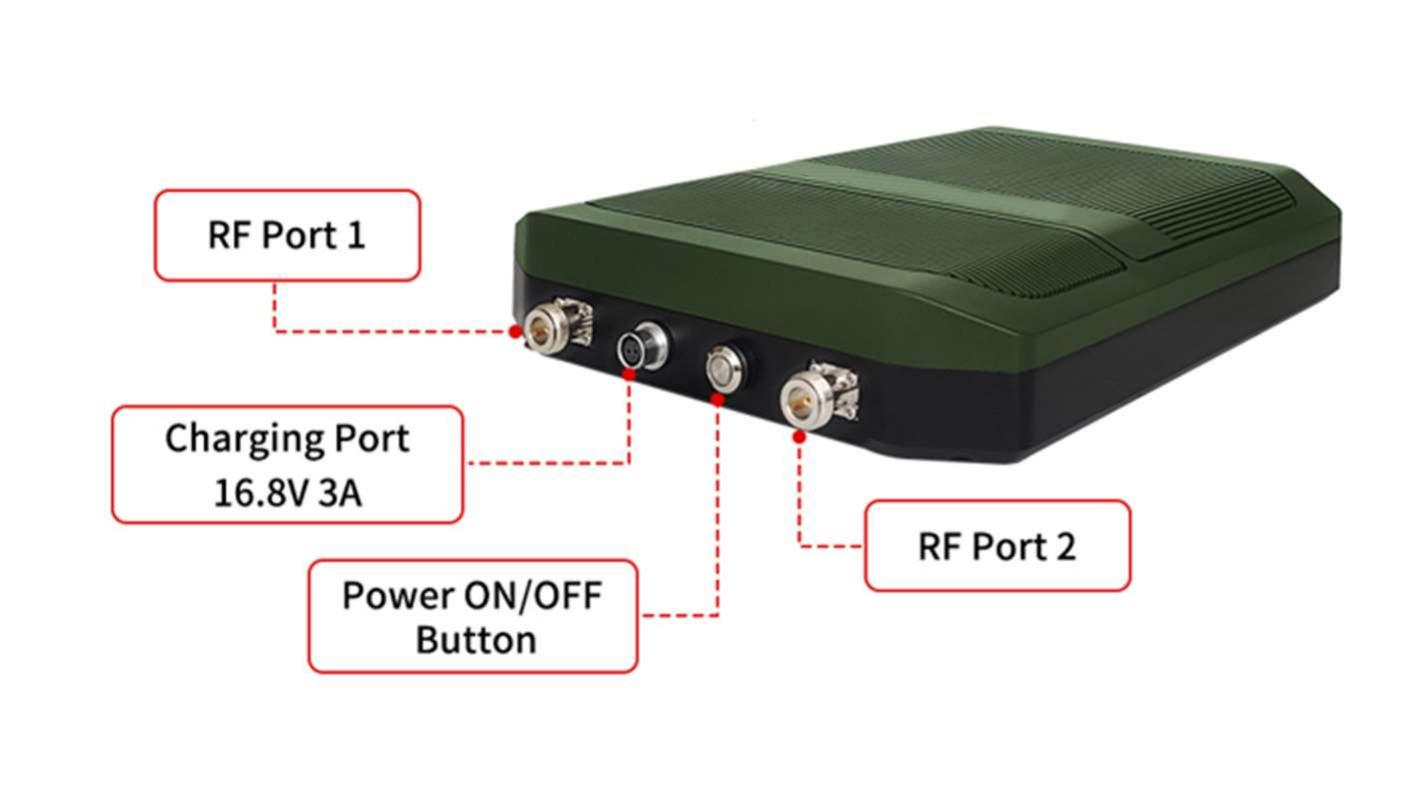

Charging Port |
IP68 Aviation Plug |
|
|
17 |
RF Connector |
N-Female |
|
